35BYJ46Product series
20–110Platform range
BYM 2026Data source
OEM · ODMCollaboration

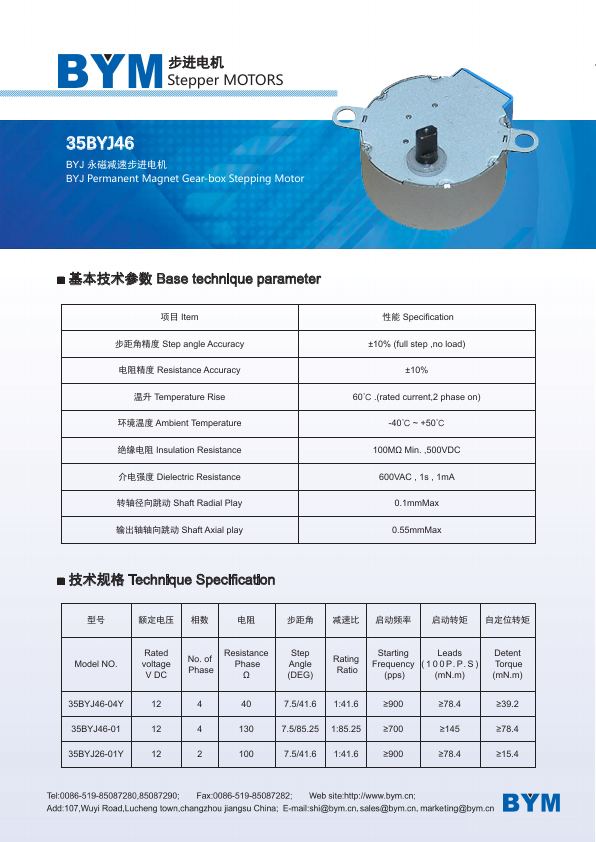

TECHNICAL DATA

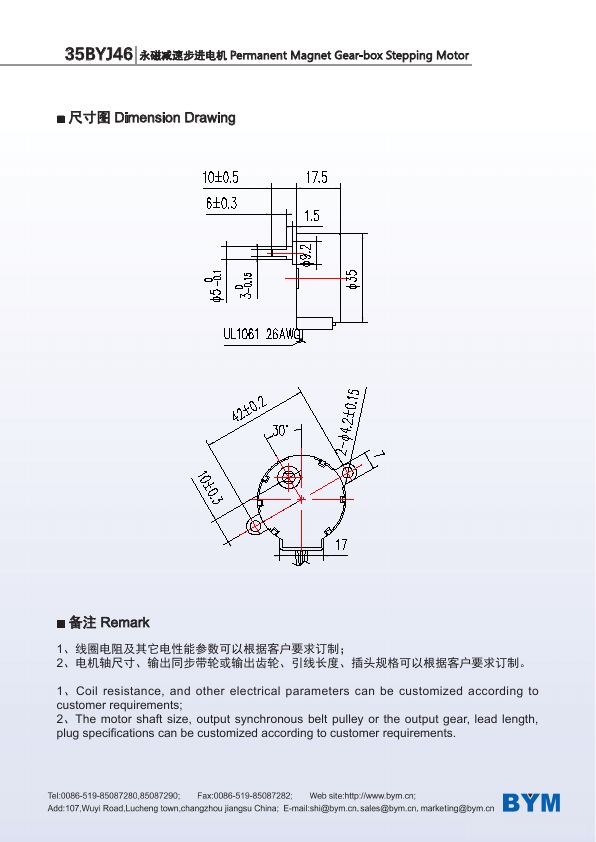

Performance, dimensions & wiring
The following pages come from BYM's latest catalog. Data supports preliminary selection; final specifications are confirmed around load, life, noise and installation requirements.
