60BYJ48Product series
20–110Platform range
BYM 2026Data source
OEM · ODMCollaboration
TECHNICAL DATA
Performance, dimensions & wiring

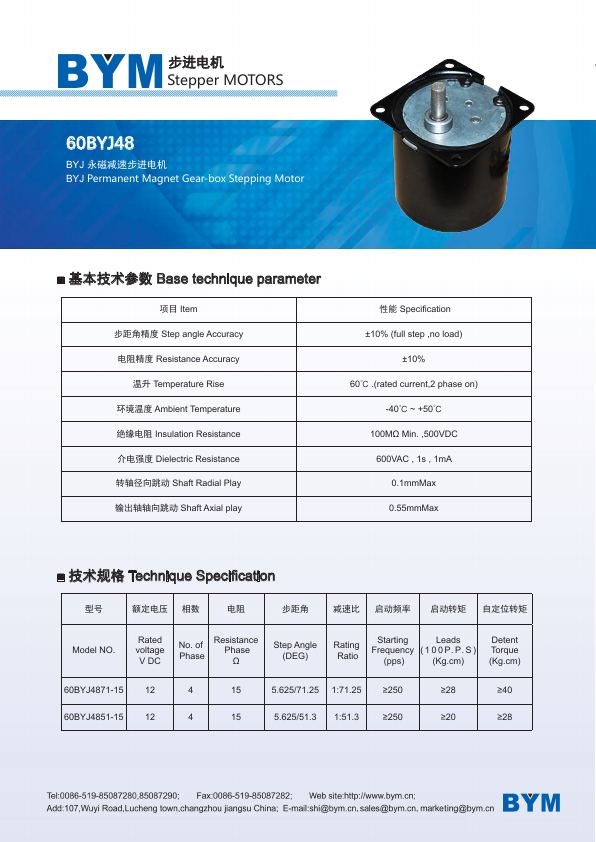

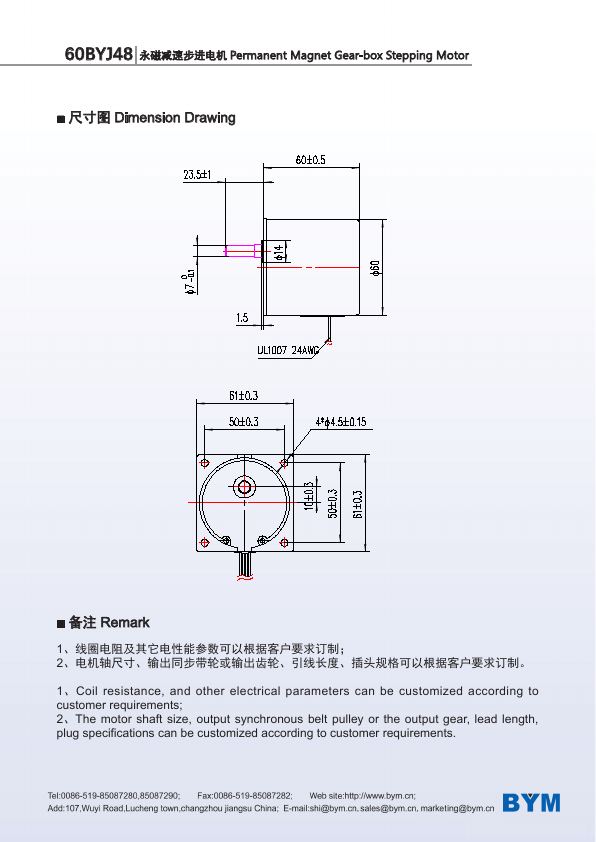

The following pages come from BYM's latest catalog. Data supports preliminary selection; final specifications are confirmed around load, life, noise and installation requirements.
